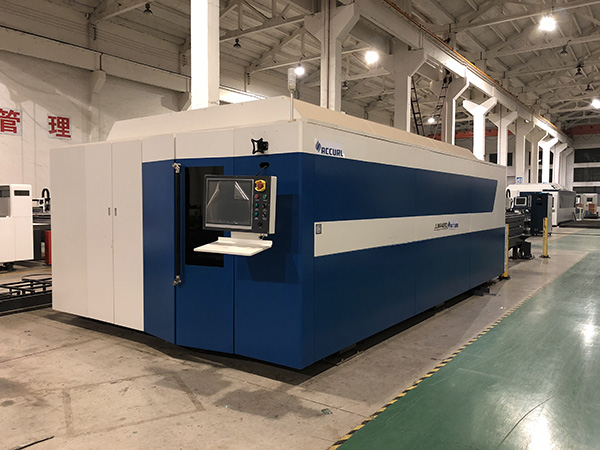

ماشین برش لیزر فیبر 3000mm 16mm

ماشین برش لیزر فیبر 3000mm 16mm

مشخصات فنی


سرعت برش: 25 متر در دقیقه
پشتیبانی از فرمت گرافیکی: AI، DXF، PLT
کاربرد: برش لیزری
شرایط: جدید
Cutting Thickness:0-8mm
CNC یا نه: بله
حالت خنک کننده: خنک کننده آب
Control Software:au3tech, weihong, Cypcut
محل منبع: آنهویی، چین (سرزمین اصلی)
CertificationCE, ISO, SGS, FDA
Name500w fiber laser cutting machine price
Model:INJ1530-F-500w/100w/1500w/2000w/4000w
Laser power500W,1000w,1500w,2000w Max, Raytool fiber laser source
Control system:au3tech, weihong, Cypcut
Cooling system:7P water chiller
XYZ axis transmissionGermany ball screw transmission
Guide rail:Taiwan Hiwin guide rail
Driver and motor:Japanese servo motor and driver
Reducer:Japanense shimpo reducer
rotary diameter250mm
خدمات پس از فروش ارائه شده: مهندسین خدمات فنی در خارج از کشور

توضیحات محصول


Features of 500w fiber laser cutting machine pricee

Model: ECO-FIBER-1530 500W 1000W CNC gold silver aluminum stainless steel precise fiber laser cutting machine

Laser source: IPG, Raycus, N-light

Fiber laser power : 500W, 750W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000W

X, Y and Z axis stroke : 3025mm, 1525mm, 100mm

Weight : 4500KG

Appearance size : 4800*2600*1750mm

Working size : 3000*1500mm

X and Y positioning accuracy : +-0.05mm

Max speed : 100m/min

Max acceleration : 1G

Max load-bearing of work table : 500KG

Transmission mode : important high precision with double driving rack

Power consumption of whole machine : < 15KW (< 12KW-1 KW)

Rated voltage and frequency : 380V/50Hz/60Hz/60A



500w fiber laser cutting machine price Parameter


Thickness mm0.8mm1 میلی متر1.5mm2 میلی متر2.5 میلیمتر3 میلیمتر4 میلی متر5 میلیمتر6 میلیمتر
Processing speed m/min907050403525201814
گاز کمکیN2N2N2N2N2N2N2N2N2
electricity

CNY/h

47.547.547.547.547.547.547.547.547.5
Auxiliary gas costs

CNY/h

 51.58 51.58 51.58 51.5860.7491.5291.5291.52143.1
Total operating costsCNY/h101.58101.58101.58101.58110.74141.52141.52141.52193.1



Technical parameter of 500w fiber laser cutting machine price




مدلECO-FIBER-1530-F 500W/1000W/1500W/2000W Fiber laser cutting machine
FOBQINGDAO PricePlease contact me
قدرت لیزریDomestic 500W 1000W 1500W 2000W 4000W  Raycus (optional IPG)
منطقه کاری1500 * 3000 میلیمتر
Laser Wave Length1064 نانومتر
میز کارSawtooth
Maximum Idle Running Speed1400mm/s
دقت موقعیت± 0.05mm / m
Position Speed20m/min
حداقل عرض خط± 0.02mm
ضخامت برش≤6mm
سیستم کنترلCypcut,WEIHONG, AR3TECH
Position Typered dot
Power Consumption≤12KW
ولتاژ کاری380V / 50Hz
Auxiliary Gasoxygen,nitrogen,air
Working life of fiber moduleMore than 100000 hours
Fiber laser cutting headRaytool or TAG or ar3tech laser head
Focus lensimported
Driver system800W-1000w Fuji servo motor made in Japan
Liner guider systemPMI made in Taiwan , (Option THK made in Japan)
Transmit systemDual Rack & Pinion type
Rack system made in Germany
Chain systemIgus made in Germany
Warranty timeWhole machine for 3 years

(domestic fiber module 2 years, imported IPG 3 years )

Delivery time30 days
Gross weight4000kg
